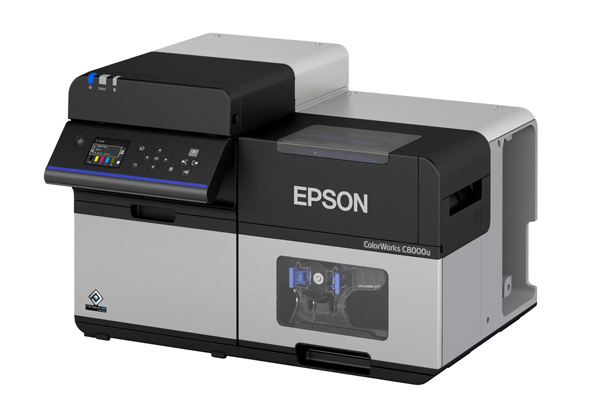

Epson ColorWorks CW-C8000



Epson ColorWorks CW-C8000

ColorWorks CW-C8000


  • Brand:Epson
  • Printer Model:ColorWorks CW-C8000
  • Category:High-Volume Industrial Color Label Printer
  • Colors:4 Individual High-Yield Cartridges (CMYK)
  • Print Width:Up to 4.25" (108mm)

Industrial Power: Epson CW-C8000

Engineered for high-volume production, the CW-C8000 combines top-tier speed with astounding image quality. This industrial-grade solution is designed to replace traditional thermal transfer systems with full-color, on-demand flexibility at speeds that keep pace with the most demanding manufacturing lines.

High-Speed Production

Blaze through large print jobs with industry-leading speeds of up to 12 inches per second (300mm/s).

PrecisionCore® Linehead Technology

Equipped with an advanced permanent linehead for consistent, high-resolution output and precise barcode scannability.

Advanced Connectivity

Seamlessly integrates into any enterprise environment with built-in Ethernet, USB, and native ZPL II support.

Durable, GHS-Compliant Output

Using UltraChrome® DL pigment ink, the CW-C8000 produces labels that are BS-5609 certified, resisting smudging, fading, and chemical exposure.

Cost-Effective Efficiency

Large-capacity ink packs (up to 480mL) reduce user intervention and lower the total cost of ownership compared to laser or thermal systems.

Modern User Interface

Features a large, intuitive color touchscreen for easy status monitoring, maintenance alerts, and configuration adjustments.

ColorWorks CW-C8000 Technical Specifications


Print & Performance

Printing Technology:
PrecisionCore® MicroTFP® Linehead with Nozzle Verification Technology
Print Resolution:
Up to 1200 x 600 dpi
Max Print Width:
4.25” (108mm)
Max Print Speed:
12 inches per second (300mm/s)
Thickness:
0.08mm to 0.25mm (4.7 – 10 mils)
Internal Roll Diameter:
8.0" (203mm) O.D. max.
Core Diameter:
3" (76mm)
Media Width:
1.0" to 4.4" (25.4mm – 112mm)
Sensors:
Gap, Black Mark, Continuous
Cutter Type:
Heavy-duty auto-cutter (standard)

Ink & Connectivity

Ink Type:
UltraChrome® DL Pigment Ink (Individual CMYK)
Ink Supply Volume:
High-yield Ink Packs (480mL capacity)
Standard Connectivity:
Ethernet (1000Base-T/100Base-TX/10Base-T), USB 2.0
Optional Wireless:
External Wi-Fi® Dongle support
Printer Languages:
ZPL II, ESC/Label, ESC/P
Barcode Support:
All standard 1D (Code 128, GS1-128, etc.) and 2D (DataMatrix, QR Code, PDF417) formats
Display:
2.7-inch full-color LCD touchscreen interface

General & Power

Substrate Types:
Matte/Gloss Paper, Synthetic/BOPP, PET Film, GHS-certified media
Safety Certifications:
UL60950-1, CSA C22.2, FCC Class A
Rated Voltage:
AC 100 - 240 VAC (50-60 Hz)
Power Consumption:
Approx. 60W (Printing), 4.5W (Standby)
Operating Systems:
Windows 11, 10, 8.1; Windows Server 2022/2019/2016; macOS 10.9 or later
Operating Temperature:
5 to 35 °C (41 to 95 °F)
Operating Humidity:
20 – 80% RH (no condensation)
Dimensions (W x D x H):
15.4" x 23.5" x 15.5"
Weight:
Approx. 37.0 kg (81.6 lbs) without ink
