Zebra ZT600 Series



Zebra ZT600 Series

Zebra ZT600 Series


  • Brand:Zebra
  • Printer Model:ZT600 Series (ZT610 / ZT620)
  • Category:High-Performance Industrial Thermal Printer
  • Colors:Monochrome (Thermal Ribbon)
  • Print Width:4" (ZT610) & 6" (ZT620) available

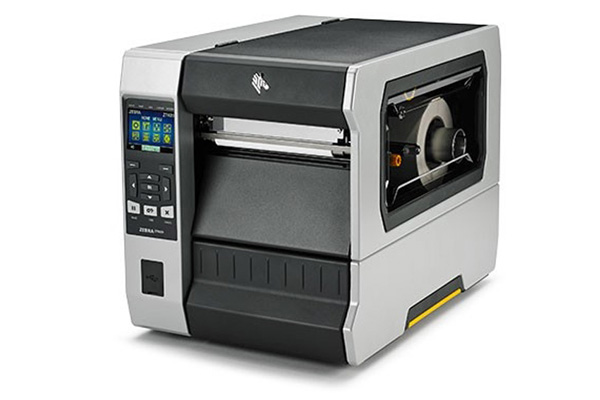

Zebra ZT600 Series

To keep your mission-critical operations running smoothly, you need printing systems that can stand up to the harshest environments and the most demanding schedules. The Zebra ZT600 Series advances the legacy of the industry-leading Xi Series to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These industrial workhorses are designed to deliver superior print quality and speed across the widest range of applications, providing 24/7 reliability to virtually eliminate downtime in your most vital workflows.

Exceptional Performance for High-Precision Applications

Whether you are printing tiny labels for electronic components or wide labels for shipping pallets, the ZT600 Series has you covered. The ZT610 offers high-resolution printing up to 600 dpi for micro-labeling where precision is non-negotiable. With best-in-class print registration and advanced thermal management, you get consistent, crisp results even at maximum print speeds.

24/7 Reliability in the Harshest Environments

Built to withstand years of continuous operation, ZT600 Series printers feature an all-metal, heavy-gauge structural design and high-quality internal components. The thermal management system is engineered to perform in extreme temperatures and dusty warehouse conditions, while the intuitive side-loading media path simplifies operation and reduces the risk of mechanical errors.

Operational Visibility and Remote Management

Powered by Link-OS™ and Zebra’s Print DNA suite, the ZT600 Series provides unparalleled intelligence. IT departments can easily manage a global fleet of printers from a single cloud-based interface. With advanced security features like PrintSecure and real-time status alerts via the vibrant color touch display, you can identify and resolve issues before they impact your productivity.

User-Friendly Design for Maximum Uptime

Every detail of the ZT600 Series was designed to save time. The color-coded media and ribbon paths make loading easy, and the onboard sensors, diagnostics, and help resources provide step-by-step guidance for troubleshooting. The tool-less printhead and platen roller replacement system allows operators to perform maintenance in seconds, keeping your line moving without the need for service calls.

Future-Ready Adaptability

The ZT600 Series is designed to evolve with your business. With multiple connectivity options, including Gigabit Ethernet, Bluetooth 4.0, and optional 802.11ac Wi-Fi, integration is seamless. Field-installable media handling options and RFID encoding capabilities ensure that the printer you buy today will still be the right solution for your labeling needs tomorrow.

Zebra ZT600 Series Specifications


Print & Other Details

Printing Technology:
Thermal Transfer and Direct Thermal
Image Security:
PrintSecure, Managed Certificates, Secure Boot, and encrypted connectivity.
Print Width:
ZT610: 4.09” (104mm) / ZT620: 6.6” (168mm)
Media Width:
ZT610: 0.79" to 4.5" / ZT620: 2.0" to 7.0"
Media Type:
Continuous, die-cut, notch, black-mark
Thickness:
0.0023" (0.058 mm) to 0.012" (0.305 mm)
Length:
Up to 150" (3810 mm) at 203 dpi
Roll Diameter:
8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
Core Diameter:
3" (76 mm)
Sensors:
Transmissive and Reflective (dual sensors)
Guide:
Side-loading metal media path with precise mechanical adjustments.
Black Mark Size:
Min. 0.43" x 0.07" (11 mm x 2 mm)
Die-cut Label Gap:
2 mm – 4 mm
Auto Cutter:
Optional heavy-duty guillotine cutter with catch tray.

Ribbon & Connectivity

Ribbon Type:
Thermal Transfer Ribbon (Wax, Wax/Resin, or Resin)
Ribbon Width:
ZT610: 0.79" to 4.33" / ZT620: 2.0" to 6.7"
Ribbon Standard Length:
1476 ft (450 m)
Ribbon Core I.D.:
1.0" (25.4 mm)
Barcode:
All standard 1D barcodes including Code 11, Code 39, Code 128, ISBT-128, UPC/EAN, MSI, Plessey, and GS1 DataBar.
Two-Dimensional Code Printing:
DataMatrix, QR Code, MicroPDF417, MaxiCode, Aztec, TLC 39, RSS-14
Standard Connectivity:
USB 2.0, Serial, Gigabit Ethernet, Dual USB Host, Bluetooth 4.0
Ethernet:
Internal Gigabit Ethernet (10/100/1000 Mbps)
Display Terminal:
High-visibility Color Graphic Display with status icons and intuitive menu navigation

General & Power

Type:
Ultra-Rugged Industrial Metal Printer
Safety Approvals:
IEC 60950, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark, CCC, ENERGY STAR
Rated Voltage:
90-265 VAC (Universal Power Supply)
Rated Frequency:
47-63 Hz
Power Consumption (Printing):
250 Watts (Max)
Power Consumption (Standby):
Lowered power mode for Energy Star compliance
Power Consumption (Off state):
Less than 0.5 W
Operating Systems:
Link-OS (compatible with Windows, Linux, Android, iOS, and macOS)
Server Systems:
Windows Server 2016, 2019, 2022
Temperature (Operating):
Thermal Transfer: 40°F to 104°F / Direct Thermal: 32°F to 104°F
Temperature (Storage):
-22°F to 140°F (-30°C to 60°C)
Humidity (Operating):
20 – 85% RH (non-condensing)
Humidity (Storage):
20 – 85% RH (non-condensing)
Dimensions (W x D x H):
ZT610: 10.5" x 19.88" x 15.58" / ZT620: 13.44" x 19.88" x 15.58"
Weight (without ink):
ZT610: 50 lbs (22.7 kg) / ZT620: 57.4 lbs (26 kg)
