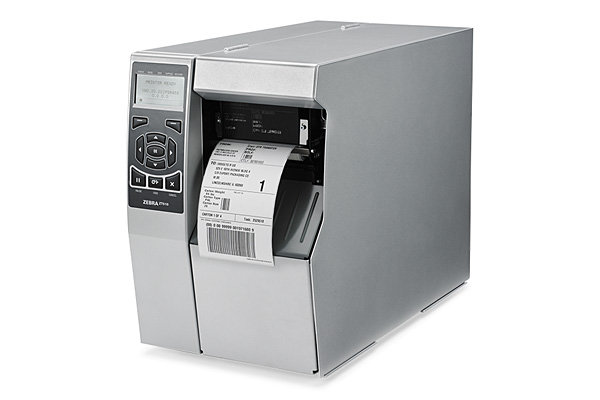

Zebra ZT510 Series



Zebra ZT510 Series

Zebra ZT510 Series


  • Brand:Zebra
  • Printer Model:ZT510 Series
  • Category:Color Inkject Pigment Ink Label Printer
  • Colors:4 Individual Cartridge
  • Print Width:4" & 6" available

Zebra ZT510 Series

Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra™ 105SLPlus™, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.

Outstanding performance at exceptional value

Zebra’s industrial printers are well-known for their durability, fast print speed, long life span and unparalleled reliability. The budget-friendly ZT510 carries on that legacy, with:

24/7 reliability to eliminate downtime

You need printing systems that can support your critical processes and keep you ahead of increasing demands. The ZT510 features Zebra’s world-renowned, high-quality print mechanisms and internal components to ensure flawless 24/7 performance, provide consistently outstanding quality and virtually eliminate costly downtime.

Unrivaled durability in the toughest conditions

With an all-metal design, rugged construction and sealed dome buttons to prevent ingress of dust, dirt and moisture, the ZT510 is right at home in today’s harshest manufacturing and warehouse environments. This durable workhorse is engineered to withstand years of continuous operation, plus extreme temperatures, debris, rough handling and more.

Link-OS™ for greater visibility, remote management and easier maintenance

Zebra’s highly intelligent, best-in-class Link-OS environment provides greater insight into the real-time status and functions of your printing processes. With Link-OS, you can use a single cloud-based application to manage routing, firmware updates, printer configuration and more, on-site or remotely. And applications like Virtual Devices, Profile Manager, Near Field Communication (NFC) and Print Touch make it easy to integrate, update and contact support.

Zebra ZT510 Series Specifications


Print & Other Details

Printing Technology:
Thermal Transfer and Direct Thermal
Image Security:
Link-OS PrintSecure, managed security certificates, and password-protected settings.
Print Width:
4.09” / 104 mm
Media Width:
0.79" (20 mm) to 4.5" (114 mm)
Media Type:
Continuous, die-cut, notch, black-mark
Thickness:
0.003" (0.076 mm) to 0.012" (0.305 mm)
Length:
• 203 dpi: 150" (3810 mm)
• 300 dpi: 100" (2540 mm)
Roll Diameter:
8.0" (203 mm) O.D. on a 3" (76 mm) I.D. core
Core Diameter:
3" (76 mm)
Sensors:
Transmissive and Reflective
Guide:
Adjustable media sensors and fixed side guides for precise alignment.
Black Mark Size:
Min. 0.43" x 0.07" (11 mm x 2 mm)
Die-cut Label Gap:
2 mm – 4 mm
Auto Cutter:
Optional field-installable guillotine cutter with wrap tray.

Ribbon & Connectivity

Ribbon Type:
Thermal Transfer Ribbon (Wax, Wax/Resin, or Resin)
Ribbon Width:
0.79" (20 mm) to 4.33" (110 mm)
Ribbon Standard Length:
1476 ft (450 m)
Ribbon Core I.D.:
1.0" (25.4 mm)
Barcode:
Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code
Two-Dimensional Code Printing:
Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec
Standard Connectivity:
USB 2.0, Serial, Gigabit Ethernet, Bluetooth LE
Ethernet:
Internal Gigabit Ethernet (10/100/1000 Mbps)
Display Terminal:
Backlit multi-line LCD with intuitive menu and easy-to-use keypad

General & Power

Type:
High-performance Industrial Metal Printer
Safety Approvals:
IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3, cTUVus, CE, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark, CCC
Rated Voltage:
Universal 100-240 VAC
Rated Frequency:
47-63 Hz
Power Consumption (Printing):
Auto-detectable 250 Watts
Power Consumption (Standby):
ENERGY STAR qualified
Power Consumption (Off state):
0.5 W
Operating Systems:
Windows 7, 8, 10, 11, Linux, Mac OS (via CUPS)
Server Systems:
Windows Server 2012, 2016, 2019, 2022
Temperature (Operating):
40°F to 104°F (5°C to 40°C)
Temperature (Storage):
-22°F to 140°F (-30°C to 60°C)
Humidity (Operating):
20 – 85% RH (non-condensing)
Humidity (Storage):
20 – 85% RH (non-condensing)
Dimensions (W x D x H):
10.56" x 20.17" x 15.58" (268.2 mm x 512.3 mm x 395.6 mm)
Weight (without ink):
Approx. 50 lbs (22.7 kg)
